PRE ORDER AVAILABLE TODAY
Have you been dreaming of getting a DirtySixer? Here is the most accessible one, made without compromise, with all the tremendous benefits of a DirtySixer. We designed the biggest 36-inch wheel bicycle in the world to offer an incomparable riding experience. High quality fabrication with tall-friendly ergonomics, 5 frame sizes for riders from 5'8" up to 7'5", ready to dominate the roads and trails. Email us at firstname.lastname@example.org with any questions.

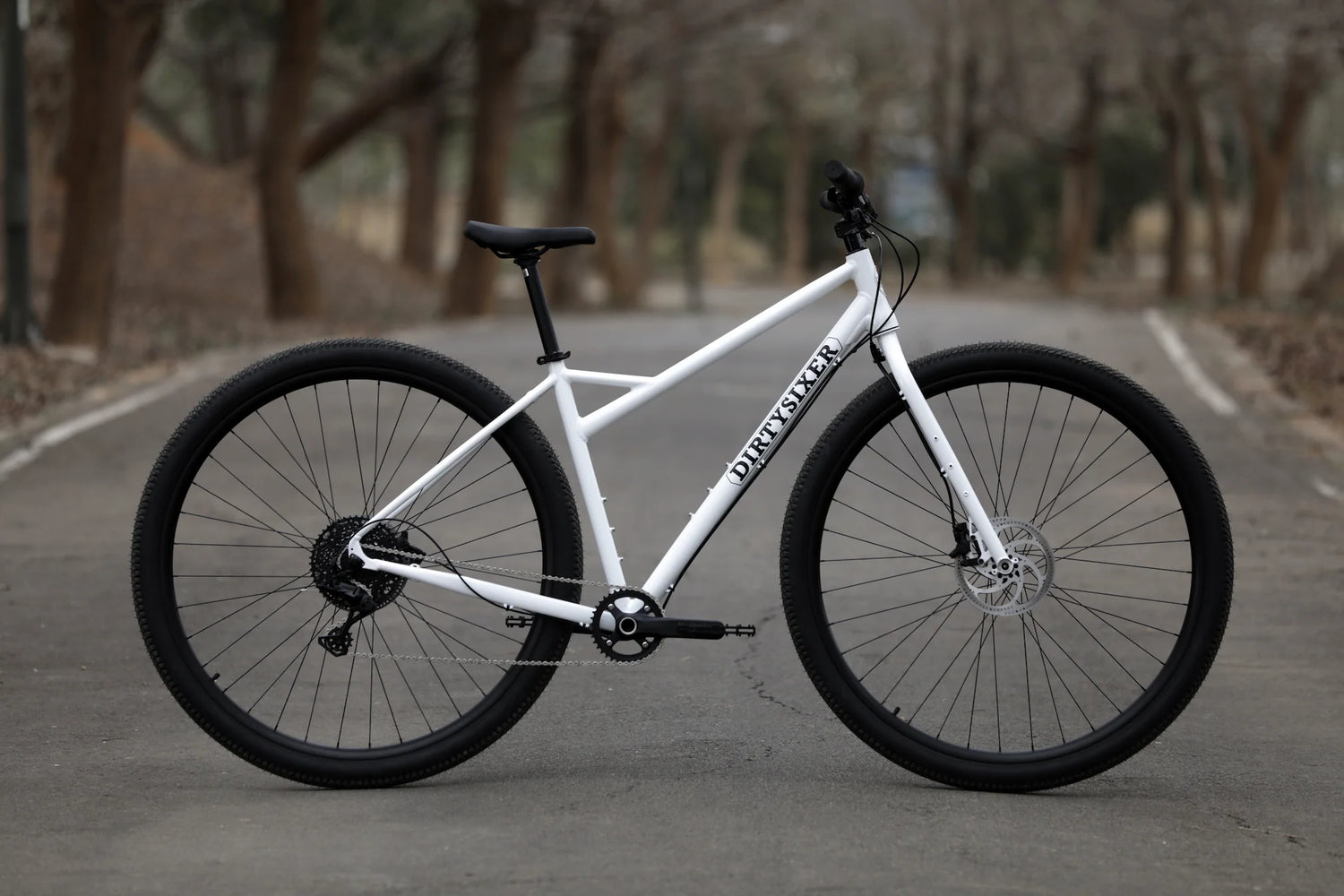

DirtySixer AllRoad Mark II tech specs.
Disclaimer: All features, technical info, functionality and other product specifications are subject to change without notice or obligation.
Frame: 6061-T6 aluminum, oversized Taiwanese tubing, IS brake mount, 5 big sizes.

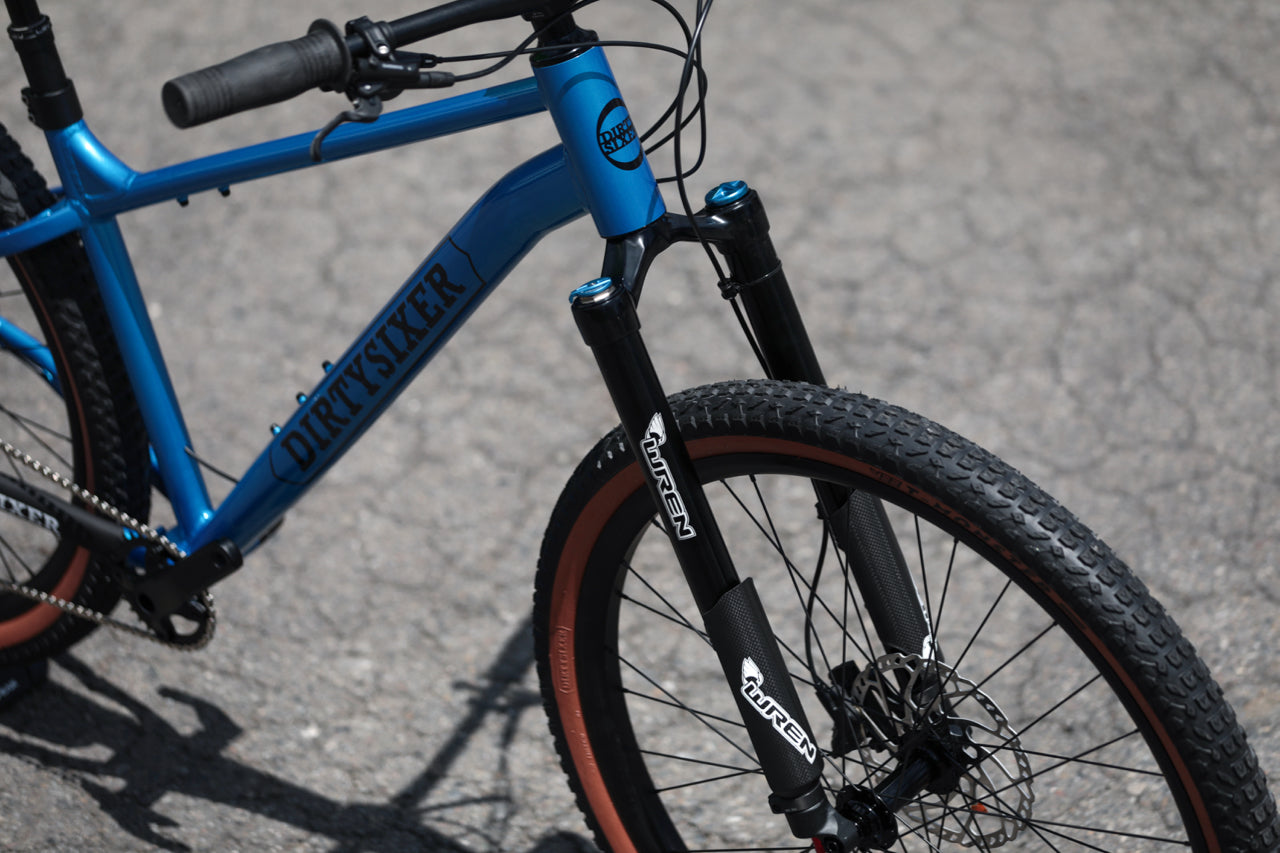

Fork: chromoly steel, oversized Taiwanese tubing with tapered steer tube, twin PM brake mounts
Headtube: Oversized tapered.
Headset: Neco Integrated ZS 28.6-44 top and ZS 56-39.8 lower
Bottom bracket: BSA threaded 1.37” x 24TPI, 100mm wide.
Bottom bracket bearings: FSA MegaEvo oversized external bearings for 30mm spindle.
Cranks: Andel 2-piece cranks, 30mm steel axle, length: from 175mm to 200mm, black.
Chainring: Andel narrow-wide 38 teeth, 7075 material, 104 BCD 4 bolts, black.
Chain: 10 speed, black, 136 links, black.

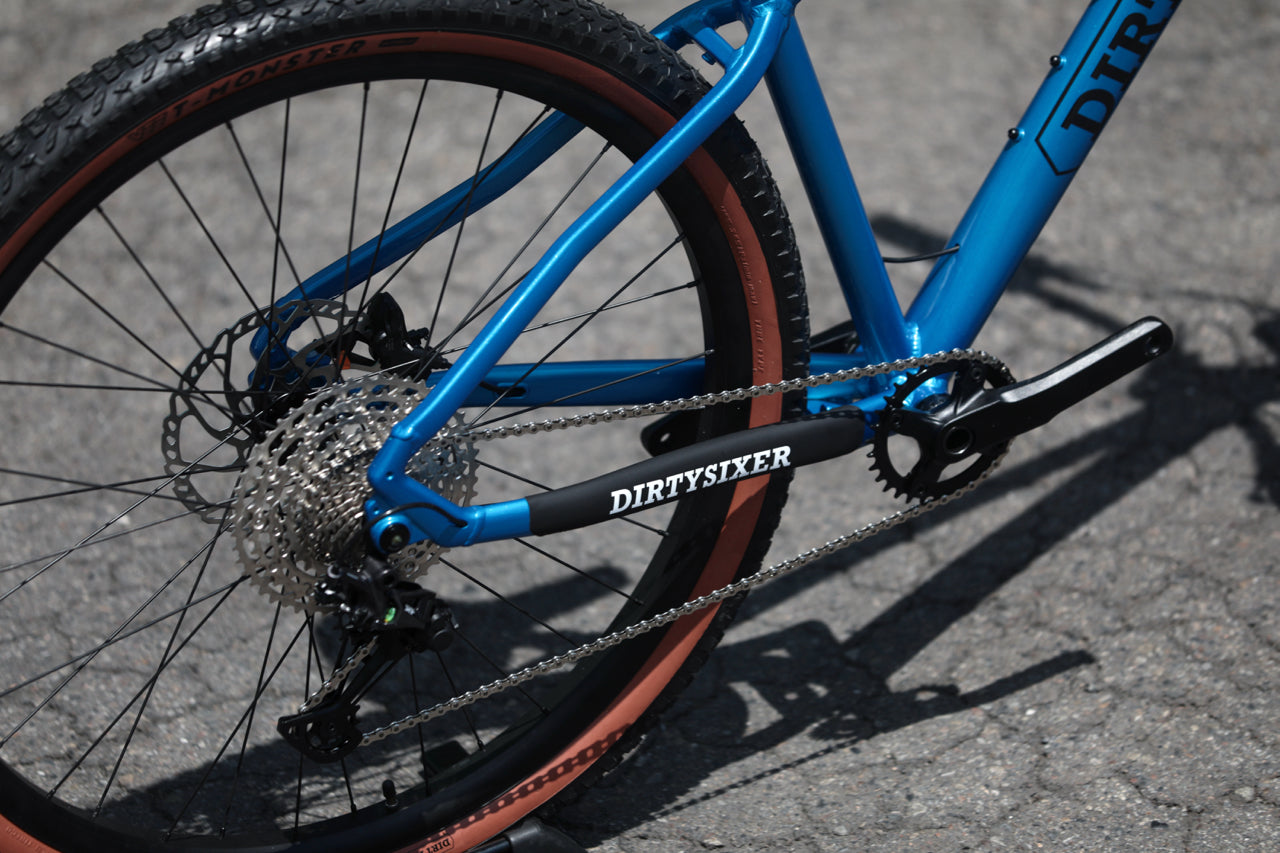

Cogset: MicroShift Advent X H-serie (steel cogs) 10-speed, wide range 11-48 teeth, (11-13-15-18-21-24-28-34-40-48).
Rear derailleur: MicroShift Advent X long cage clutch derailleur, 10-s trigger shifter.
Rims: DirtySixer custom alloy double wall with custom weight-saving cut-outs, 35mm internal, 40mm external, 36 holes, anodized black.
Tires: Nimbus NightRider Lite, 2.25” (57mm) wide, gravel profile.
Front hub: twin rotors, 150mm x 15mm thru axle, 36 holes, black.
Rear hub: 197mm x 12mm thru axle, HG steel driver cassette, 36 holes, black.
Spokes: 14G straight gauge stainless steel, brass nipples, black, laced 4 cross, black.
Brakes front: Bengal Ares 7.5 hydraulic twin rotors, 2-pistons, wide lever with parking lock pin.
Front rotors size: twin 203mm, 6 bolts
Brakes rear: Bengal Ares 7 hydraulic, 2-pistons, wide lever.
Rear rotor size: 203mm, 6 bolts.
Handlebar: alloy 31.8mm clamp area, 780mm wide, 20mm rise, 15mm sweep, back.
Grips: DirtySixer custom oversized 43mm diameter, 150mm wide.
Stem: alloy, 50mm, zero rise, 31,8mm.
Saddle: 203mm wide, steel rails.
Seatpost: 31.6mm diameter, zero setback, 400mm long, black.
Seat clamp: 34.9mm twin bolt.
Pedals: DirtySixer custom CNC 110mm x 160mm, 2 oversized replaceable bearings, full steel axle, black.
Optional accessories: custom DirtySixer rear rack and center stand. Triple bottle mounts on the frame downtube and seat tube. Triple eyelets on fork legs, with full compatibility with low rider rack from Tubus.
Net Weight: XL: 30lbs, 5XL: 34lbs.
Max total weight authorized: 400lbs / 181kg.
Box includes 6 extra blank spokes.
DirtySixer bikes are warranted against frame, fork and wheels defects in materials and workmanship for three (3) years from the date of delivery of the product, subject to the limitations detailed below.
This warranty does NOT cover the following:
• Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler.
• Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use.
• Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold.
• Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product.
• Normal wear and tear.
• Labor required to remove and/or refit and re-adjust the product within the bicycle assembly.
This limited warranty is expressly limited to the repair or replacement of a defective frame, fork or wheel, at the discretion of DirtySixer bikes, and is the sole remedy of the warranty.
This limited warranty applies only to the original purchaser of the DirtySixer product and is not transferable.
In no event shall DirtySixer can be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.
This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place.
This limited warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
